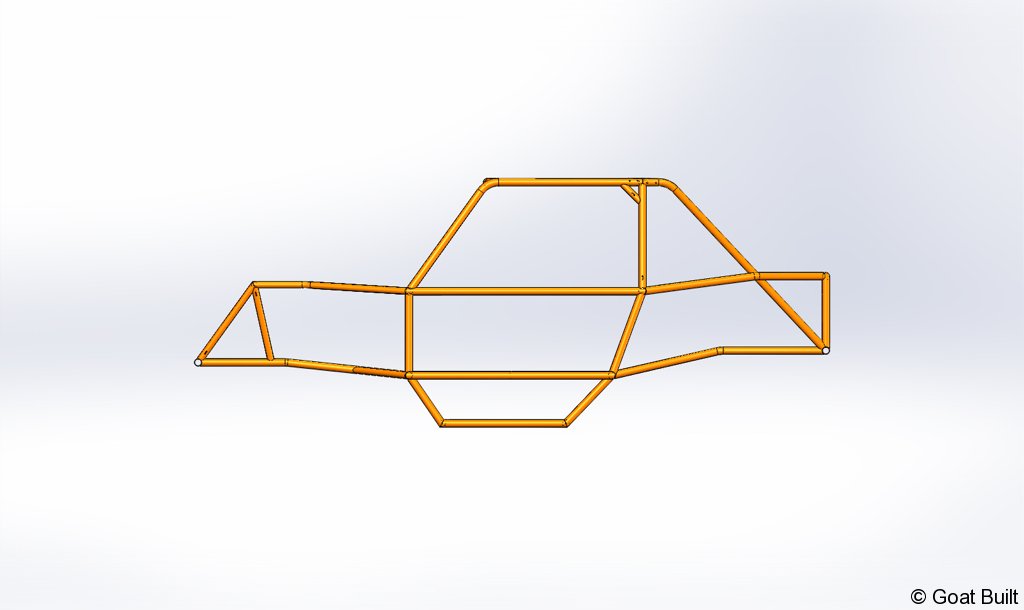

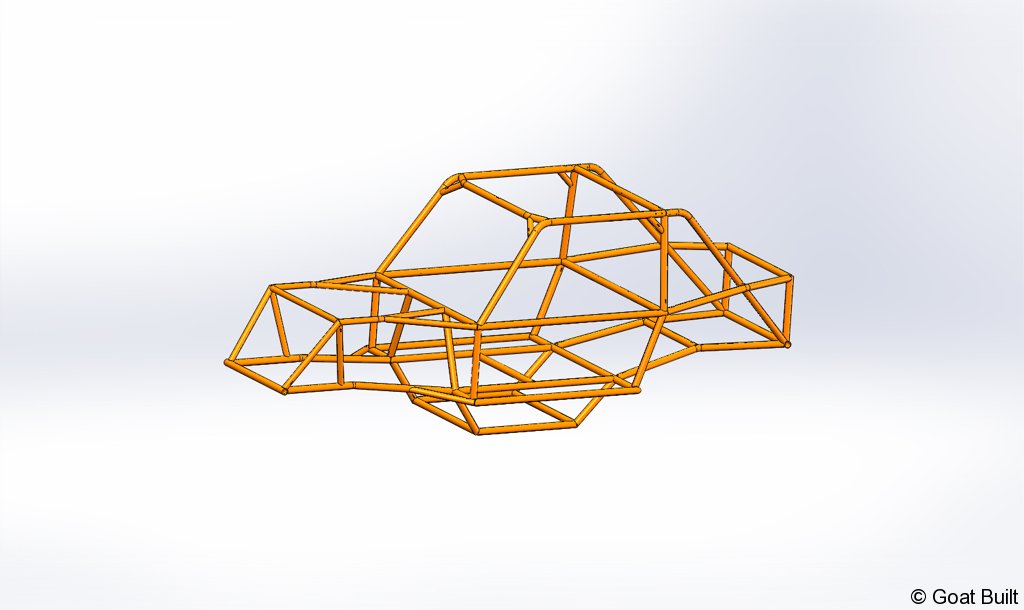

IBEX 2 SEAT CHASSIS

The Ibex 2-seat shares the same front and middle sections with the 4-seat Ibex chassis so all of the engine mounts, suspension links and mounts, etc are the same.

  • 110″ wheel base when using the Ibex suspension package
  • Room for storage or tool box
  • 16″ travel rear shocks, 14″ travel front shocks
  • 20 gal Ibex fuel tank

Base Tube Kit: $2299

The base tube kit is a stripped down version of the full tube kit with just the main tubes.  This is the most economical Ibex kit and allows the most builder customization.  This level of completion is often our competitor’s complete chassis!!   The base tube kit features are:

  • Main/exterior tubes, over 165′ of USA made 1020 DOM tubing, 340 lbs total weight
  • 63 laser notched tubes with individual part numbers, ready to weld
  • Additional diagonal and bracing are recommended and to be added by the builder
  • No hood tubes, likely configuration when using a Jeep or FJ hood
  • Includes necessary flat plate gussets and tube cage gussets
  • Builder can add any Ibex components or add any of the additional tubes included in the Full Tube Kit
  • $2299 plus shipping

Full Tube Kit: $3399

The Ibex Full Tube kit includes all the tubes needed to build a complete Ibex kit.   The Full Tube Kit is the fastest, easiest way to build a rock buggy chassis!!  The Full Tube Kit features are:

  • Includes all 63 tubes of the Base Kit plus 56 additional tubes, over 276′ of USA made 1020 DOM tubing, 545 lbs total weight
  • 119 total laser notched tubes with individual part numbers, ready to weld
  • Includes front hood/fender tubes
  • Ready to accept any or all Ibex chassis components
  • $3399 plus shipping



Low Side Kit: +$100. 2-seat $3499 total

The Low side kit is an option on the 2-seat or 4-seat Ibex chassis.  The side bars are lowered for easier entry and exit



Spare Tire Rear Tube Kit : +$100. 2-seat $3499 total

The Spare Tire Rear Tube kitt is an option on the 2-seat  Ibex chassis.  Accommodates up to a 42″ spare tire



Chromoly Full Tube Kit: $4999

The Ibex Full Tube kit includes all the tubes needed to build a complete Ibex kit.   The Full Tube Kit is the fastest, easiest way to build a rock buggy chassis!!  The Full Tube Kit features are:

  • Includes all 63 tubes of the Base Kit plus 56 additional tubes, over 276′ of USA made 4130 Chromoly tubing, 475 lbs total weight, 70 lb weight saving over  the standard DOM chassis.
  • 119 total laser notched tubes with individual part numbers, ready to weld
  • Includes front hood/fender tubes
  • Ready to accept any or all Ibex chassis components
  • $4999  plus shipping



Complete Kit: From $10,000

The complete Ibex chassis kit includes every Goat Built Ibex component required to build an Ibex rock buggy, purchase a complete kit and it ships for free!

  • Full Tube kit
  • Fixture kit
  • Engine mount cross member, bushings, engine brackets
  • Transmission mount, Atlas tail shaft support
  • Complete high strength steel skid plate kit
  • Front and rear, upper and lower suspension links, rod ends, jam nuts, link bolts, 8 total
  • Front and rear axle trusses, link and shock brackets
  • Front rear chassis suspension link and shock brackets
  • Winch mount, radiator mount and battery mount
  • Compete aluminum interior panels with seat mounts, orbital and master cylinder mount and dash assembly
  • 3/16 plastic body side panels and aluminum engine side panels
  • Hood and grill, 1/8″ aluminum roof panels
  • Fuel tank and fuel tank mount
  • Misc chassis bracket kit with PS resi mounts, PS cooler mount, wiring and plumbing mounting brackets
  • All Ibex brackets and components are complete with weld spacers and complete Grade 8 hardware
  • Free shipping on complete kits

Starting at $10,000

Rock Crawler Chassis

To complete your Ibex rock buggy, you will need to provide these major components:

  • Front and rear axles
  • Engine, transmission, T-case and drive shafts
  • 14″ front coil over shock, 16″ travel rear shock and air bumps
  • Currie Antirock sway bars
  • 28 x 19 Radiator
  • Seats
