IBEX Front Suspension Brackets

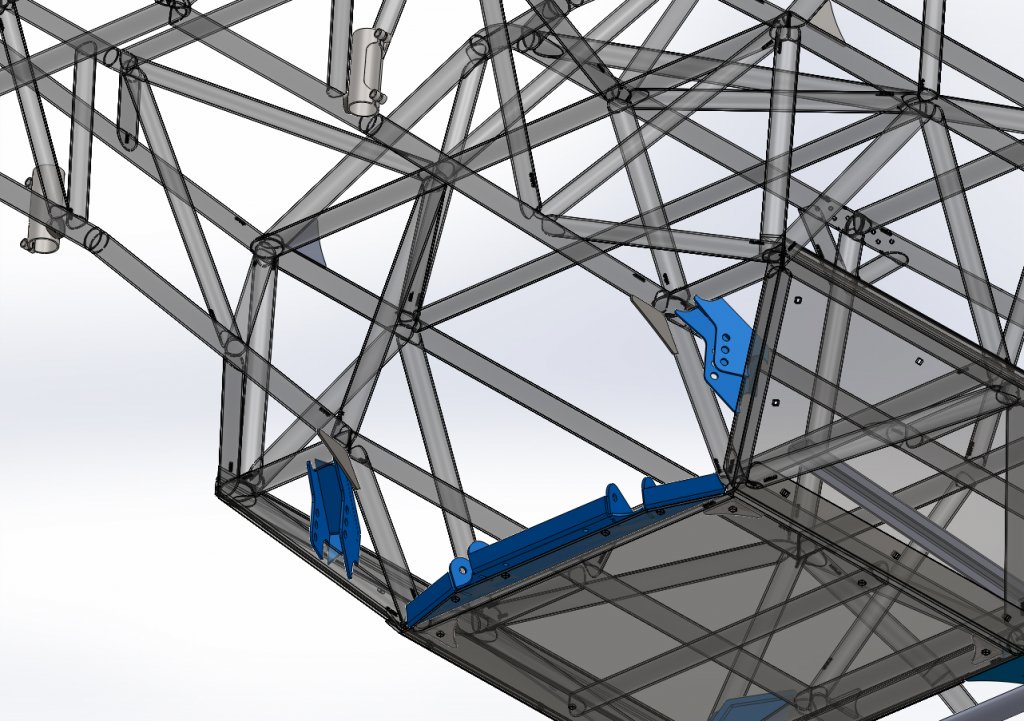

1136 Front Chassis Lower Control Arm Bracket

  • $89.95
  • Provides optimum lower control arm geometry and maintains maximum turning radius
  • Designed to fit Ibex front belly cross bar
  • Provides the front mounting holes for Ibex Skid Plate Kit
  • Uses common 2-5/8 wide x 9/16 suspension joints, holes can be drilled out for larger bolts
  • We recommend to use the Ibex 1175 Lower Link Kit
  • Includes 9/16 grade 8 hardware
  • Superior by design and constructed of high strength 3/16 XT 100 grade steel.  At 100,000 psi yield strength, these brackets are 3 times stronger than the mild steel other bracket manufactures use



1137 Front Chassis Upper Control Arm Bracket

  • $79.95
  • Locates the upper control arms to provide optimum anti-dive characteristics
  • 3 adjustment holes to tune the anti-dive to your terrain and driving style
  • Designed to use 2″ wide x 9/16″ suspension joint, holes can be drill out for larger bolts
  • We recommend to use the Ibex 1176 Upper Link Kit
  • Includes 9/16 grade 8 hardware
  • Superior by design and constructed of high strength 3/16 XT 100 grade steel.  At 100,000 psi yield strength, these brackets are 3 times stronger than the mild steel other bracket manufactures use



1138 Front Axle Lower Control Arm Bracket

  • $94.95
  • Available in both 3-1/8 & 3-1/2 axle tube diameter
  • Provides optimum lower control arm geometry and maintains maximum turning radius
  • Integral lower shock mount for 1/2″ bolt x 1-1/4 and 1-1/2 mounting widths
  • Uses common 2-5/8 wide x 9/16 suspension joints, holes can be drilled out for larger bolts
  • We recommend to use the Ibex 1175 Lower Link Kit
  • Includes 9/16 grade 8 hardware for the lower link and 1/2 grade 8 shock bolts
  • Superior by design and constructed of high strength 3/16 XT 100 grade steel.  At 100,000 psi yield strength, these brackets are 3 times stronger than the mild steel other bracket manufactures use



1139 Front Axle Upper Control Arm Bracket

  • $264.95
  • Available in both 3-1/8 & 3-1/2 axle tube diameter
  • Universal design for left or right diff
  • Provides optimum upper control arm geometry and trusses axle housing to resist bending
  • Integral lower bump stop strike pad for option air bump mounting kit
  • Designed to use 2″ wide x 9/16″ suspension joint, holes can be drill out for larger bolts
  • We recommend to use the Ibex 1176 Upper Link Kit
  • Includes 9/16 grade 8 hardware
  • Optional 4300 Double Ended Ram m0unt available
  • Superior by design and constructed of high strength 3/16 XT 100 grade steel.  At 100,000 psi yield strength, these brackets are 3 times stronger than the mild steel other bracket manufactures use

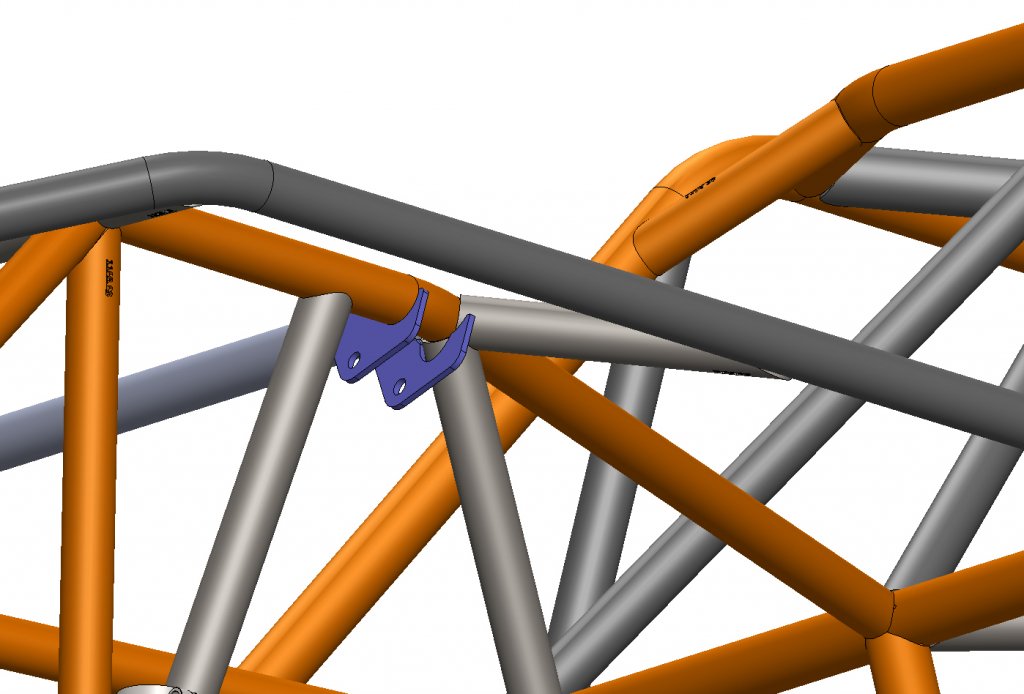

1162 Front Chassis Upper Shock Mount

  • $39.95
  • Include shock mounts for both sides and grade 8 shock bolts
  • Mounts a single coil over shock
  • Fits shocks with 1/2″ bolt x 1-1/4 and 1-1/2 mounting width
  • Superior by design and constructed of high strength 3/16 XT 100 grade steel.  At 100,000 psi yield strength, these brackets are 3 times stronger than the mild steel other bracket manufactures use



1166-10 Front Axle Bypass Shock Mount

  • $84.95
  • Include 2 mounts, grade 8 shock bolts
  • Mounts a bypass shock to the front of the axle tube in the lowest position possible with integral skid plate
  • Fits shocks with 1/2″ bolt x 1-1/4 and 1-1/2 mounting width
  • Superior by design and constructed of high strength 3/16 XT 100 grade steel.  At 100,000 psi yield strength, these brackets are 3 times stronger than the mild steel other bracket manufactures use
