IBEX Rear Suspension Brackets

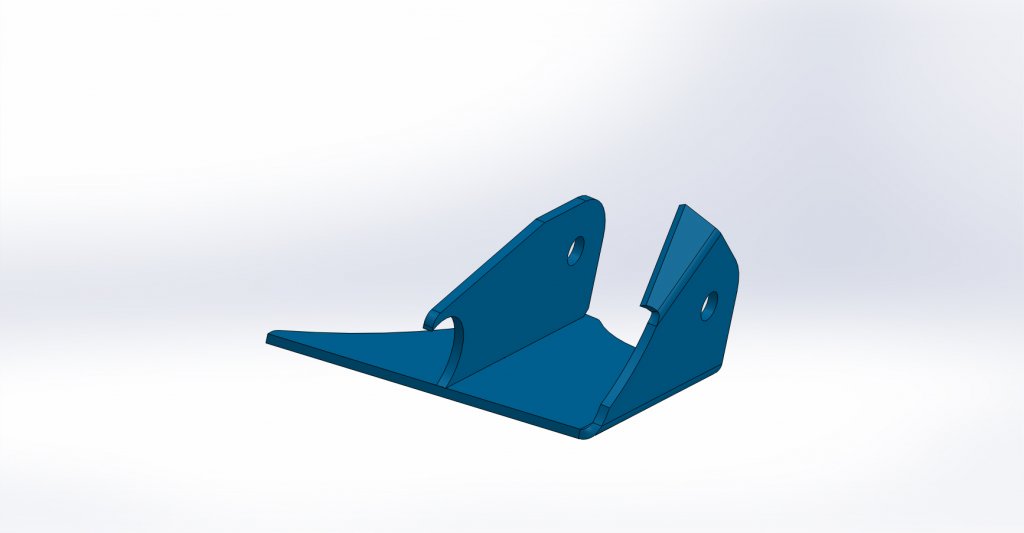

1133 Rear Chassis Lower Control Arm Bracket

  • $69.95
  • Provides optimum lower control arm geometry and maintains maximum turning radius
  • Designed to fit Ibex front belly cross bar
  • Provides the front mounting holes for Ibex Skid Plate Kit
  • Uses common 2-5/8 wide x 9/16 suspension joints, holes can be drilled out for larger bolts
  • We recommend to use the Ibex 1175 Lower Link Kit
  • Includes 9/16 grade 8 hardware



1134 Rear Chassis Upper Control Arm Bracket

  • $79.95
  • Locates the upper control arms to provide optimum anti-squat characteristics
  • 3 adjustment holes to tune the anti-squat to your terrain and driving style
  • Designed to use 2″ wide x 9/16″ suspension joint, holes can be drill out for larger bolts
  • We recommend to use the Ibex 1176 Upper Link Kit
  • Includes 9/16 grade 8 hardware



1131   2-Seat Rear Axle Lower Control Arm Bracket

  • $71.95
  • Available in  3″, 3-3/8″ and 3-1/2″ axle tube diameter
  • Provides optimum lower control arm geometry and maintains high ground clearance
  • Use with 1135 rear axle lower shock mount for a single coil over
  • Uses common 2-5/8 wide x 9/16 suspension joints, holes can be drilled out for larger bolts
  • We recommend to use the Ibex 1175 Lower Link Kit
  • Includes 9/16 grade 8 hardware for the lower link and 1/2 grade 8 shock bolts
  • Superior by design and constructed of high strength 3/16 XT 100 grade steel.  At 100,000 psi yield strength, these brackets are 3 times stronger than the mild steel other bracket manufactures use



1131-2   2-Seat Rear Axle Lower Control Arm Bracket With Bypass Shock Mount

  • $99.95
  • Available in  3″, 3-3/8″ and 3-1/2″ axle tube diameter
  • Provides optimum lower control arm geometry and maintains high ground clearance
  • Integral lower shock mount for 1/2″ bolt x 1-1/4 and 1-1/2 mounting widths
  • Uses common 2-5/8 wide x 9/16 suspension joints, holes can be drilled out for larger bolts
  • We recommend to use the Ibex 1175 Lower Link Kit
  • Includes 9/16 grade 8 hardware for the lower link and 1/2 grade 8 shock bolts
  • Superior by design and constructed of high strength 3/16 XT 100 grade steel.  At 100,000 psi yield strength, these brackets are 3 times stronger than the mild steel other bracket manufactures use



1131-4 Rear Axle Lower Control Arm Bracket

  • $84.95
  • Available in  3″, 3-3/8″ and 3-1/2″ axle tube diameter
  • Provides optimum lower control arm geometry and maintains high ground clearance
  • Integral lower shock mount for 1/2″ bolt x 1-1/4 and 1-1/2 mounting widths
  • Uses common 2-5/8 wide x 9/16 suspension joints, holes can be drilled out for larger bolts
  • We recommend to use the Ibex 1175 Lower Link Kit
  • Includes 9/16 grade 8 hardware for the lower link and 1/2 grade 8 shock bolts
  • Superior by design and constructed of high strength 3/16 XT 100 grade steel.  At 100,000 psi yield strength, these brackets are 3 times stronger than the mild steel other bracket manufactures use



1132 Rear Axle Upper Control Arm Bracket

  • $264.95
  • Universal design fits 3 to 3-1/2″ axle tube diameter
  • Provides optimum upper control arm geometry and trusses axle housing to resist bending
  • Integral lower bump stop strike pad for option air bump mounting kit
  • Designed to use 2″ wide x 9/16″ suspension joint, holes can be drill out for larger bolts
  • We recommend to use the Ibex 1176 Upper Link Kit
  • Includes 9/16 grade 8 hardware

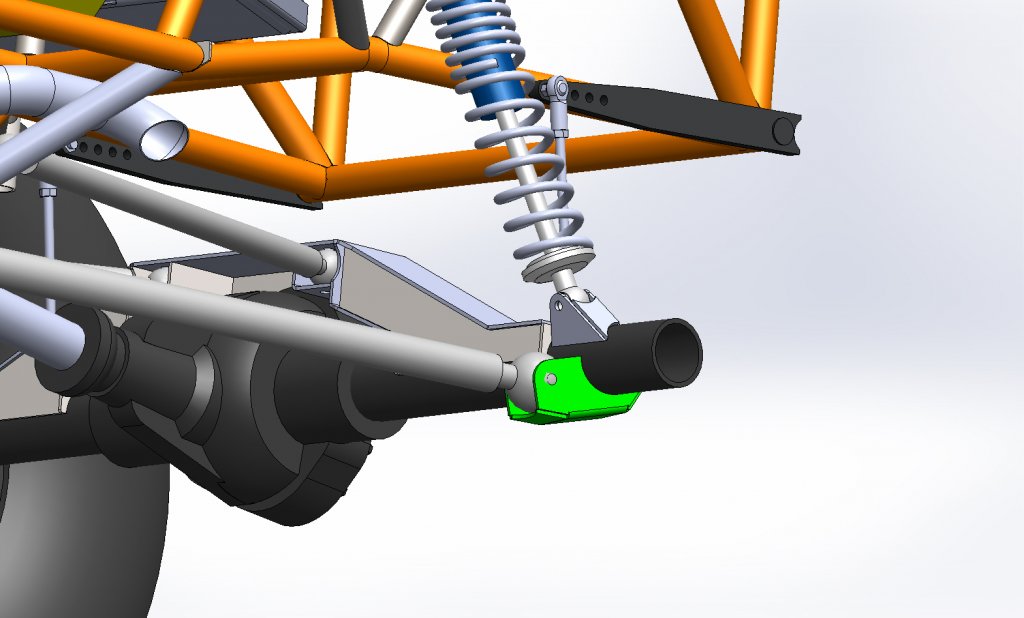

1135  2-Seat Rear Axle Shock Mount

  • $44.95
  • Includes mounts for both side and 1/2″ grade 8 shock  bolts
  • Designed to fit 1/2″ bolt x 1-1/4″ or 1-1/2″ wide shock mounts
  • Mounts a single coil over shock to the axle tube
  • For single shock applications, use in conjunction with 1163 upper shock mount
  • For a dual shock application, use with 1131-2 Lower Control Arm Bracket and 1165 Dual Upper Shock Mount
  • Constructed of high strength 3/16 XT 100 grade steel.  At 100,000 psi yield strength, these brackets are 3 times stronger than the mild steel other bracket manufactures use



1161  4-Seat Chassis Shock Mount

  • $69.95
  • Includes mounts for both side and 1/2″ grade 8 shock  bolts
  • Designed to fit 1/2″ bolt x 1-1/4″ or 1-1/2″ wide shock mounts
  • Mounts a single coil over shock to the chassis tubes
  • For single shock applications, use in conjunction with 1131-4 Lower Control Arm Bracket
  • Constructed of high strength 3/16 XT 100 grade steel.  At 100,000 psi yield strength, these brackets are 3 times stronger than the mild steel other bracket manufactures use

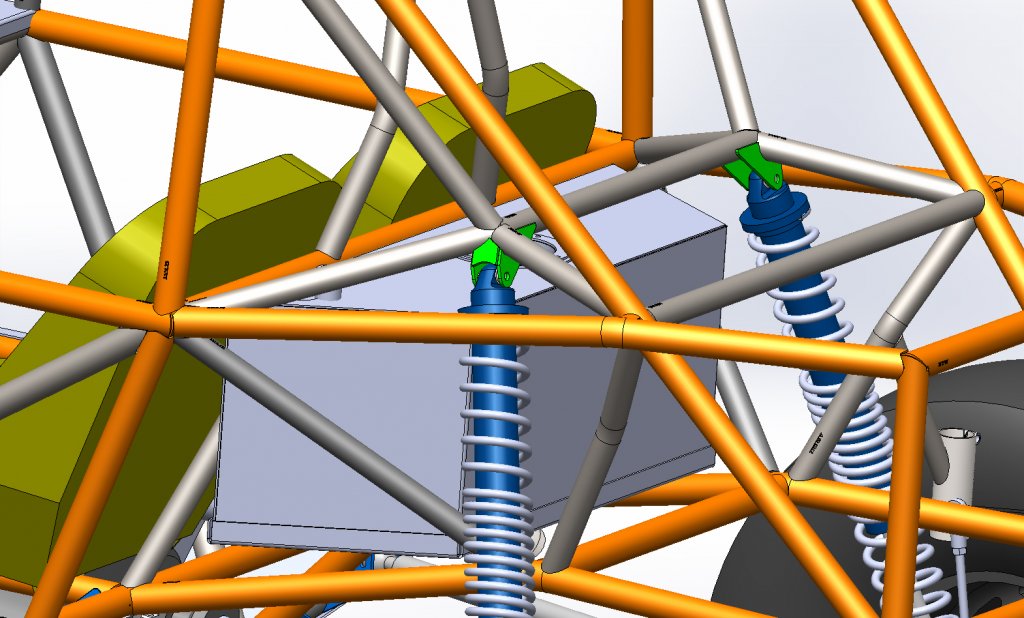

1163  2-Seat Chassis Shock Mount

  • $49.95
  • Includes mounts for both sides and 1/2″ grade 8 shock  bolts
  • Designed to fit 1/2″ bolt x 1-1/4″ or 1-1/2″ wide shock mounts
  • Mounts a single coil over shock to the chassis tubes
  • For single shock applications, use in conjunction with 1131 Lower Control Arm Bracket and 1135 Rear Axle Shock Mount
  • Constructed of high strength 3/16 XT 100 grade steel.  At 100,000 psi yield strength, these brackets are 3 times stronger than the mild steel other bracket manufactures use



1165  2-Seat Chassis Shock Mount, Bypass Shock

  • $69.95
  • Design to mount  a 2.0 Coil Over and up to 3.0 Bypass Shock  or a 2.5 Coil Over and a 2.5 Bypass Shock
  • Includes mounts for both sides and 1/2″ grade 8 shock  bolts
  • Designed to fit 1/2″ bolt x 1-1/4″ or 1-1/2″ wide shock mounts
  • Multiple configurations available to fit popular shock brands as well as a blank universal mount
  • Superior by design and constructed of high strength 3/16 XT 100 grade steel.  At 100,000 psi yield strength, these brackets are 3 times stronger than the mild steel other bracket manufactures use
